The S-23A is an automatic scissor style band saw providing exceptional miter cutting capability for medium duty applications.
Featuring an automatic mode control with an LED readout for blade tension, blade speed, blade height position, run time of the cut, blade drive motor amperage draw, part length, quantity required, piece count, job run time, total blade run time. All offered in several language choices.
The S-23A miters from 90° to 60°. Featuring a 16″H x 20″W capacity at 90°, 8.8 HP motor, and 1 1/4″ blade, the S-23A automatic scissor style band saw is built solidly to give you maximum productivity.
| Rectangular Capacity at 90° | 16” H x 20” W | 406 mm H x 508 mm W |
| Round Capacity at 90° | 16″ | 406 mm |
| Blade Dimensions | 1 1/4” x 16′ 10” | 34 mm x 5130 mm |
| Blade Drive | 8.8 HP VFD | 6.6 kW VFD |
| Blade Speed | 75-350 sfm | 22-106 m/min |
| Coolant Tank Capacity | 12 US gal | 45 liters |
| Machine Weight | 4,200 lbs | 1909 kg |
| Machine Dimensions | 101” W 95” L 61” H |
2272 mm W 2413 mm L 1549 mm H |
|
|

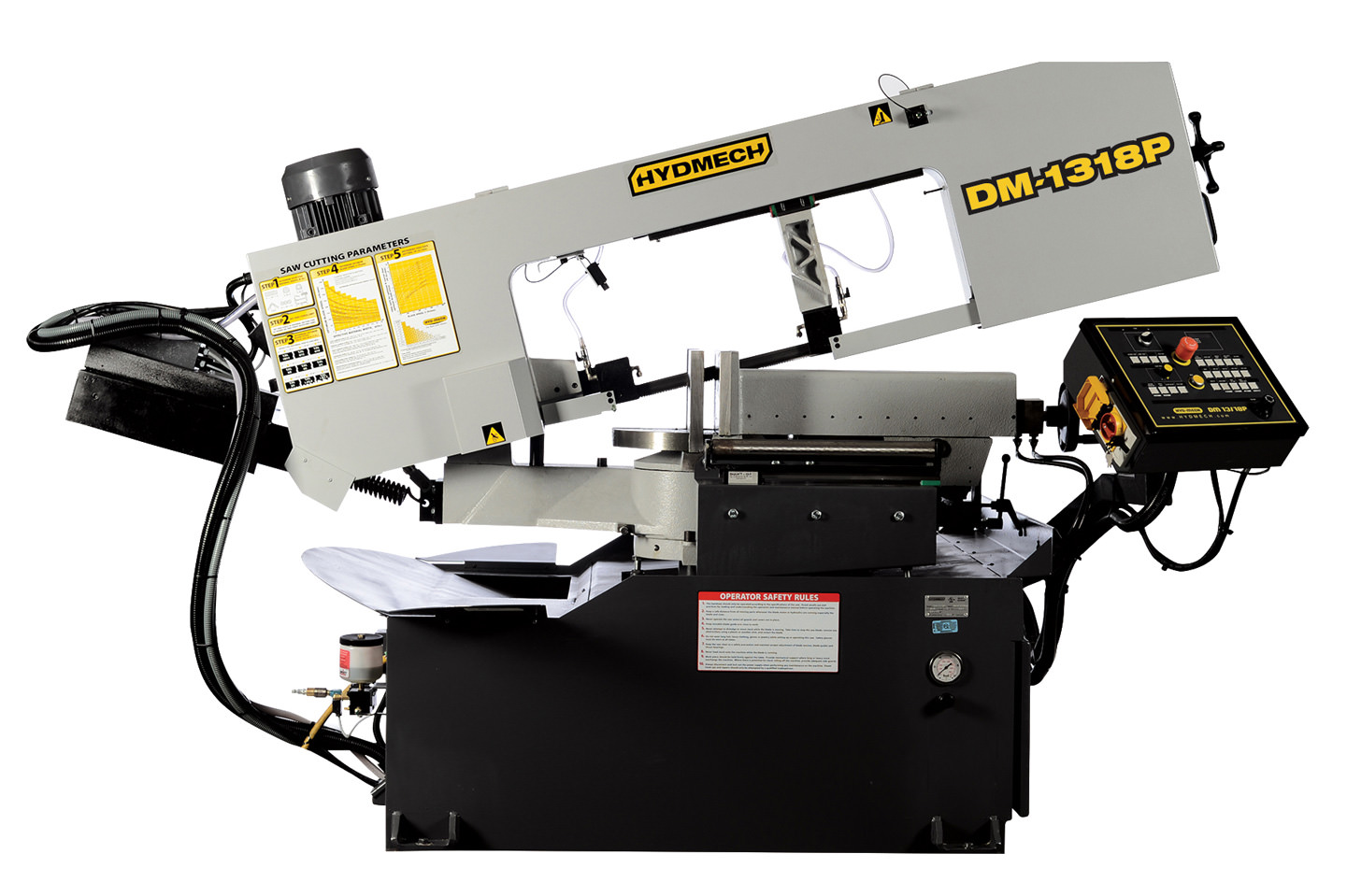

In line with HYDMECH’s policy of on-going product improvement, we reserve the right to modify features and specifications. Photos may show optional equipment.
